Floor Ventilator - Chrome

Rytons Floor Ventilator with Chrome Louvre

Size:

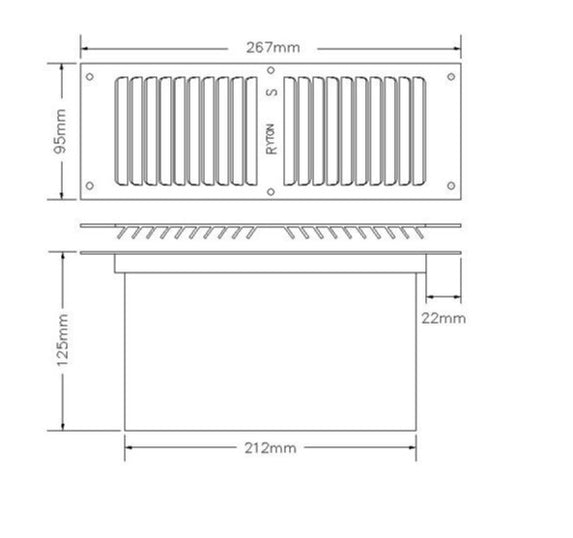

• 267mm L x 95mm H x 125mm D (see image gallery above).

Free Area:

• 11,000mm² (110cm²) per set.

Colours:

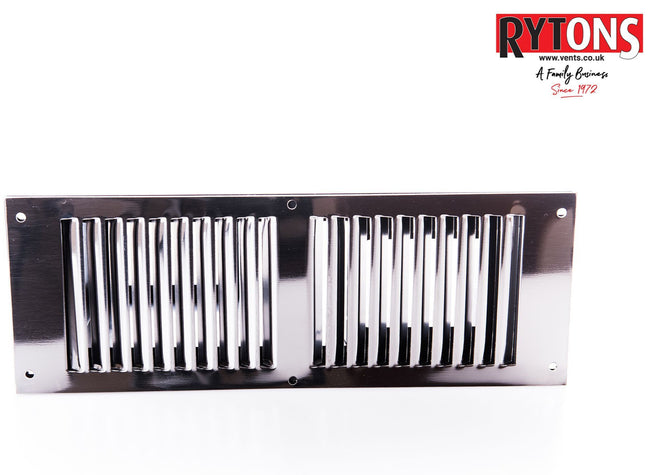

• Louvre grille: Chrome.
• Sleeve: Black.

Composition:

• Louvre grille: Grade 430 Chrome

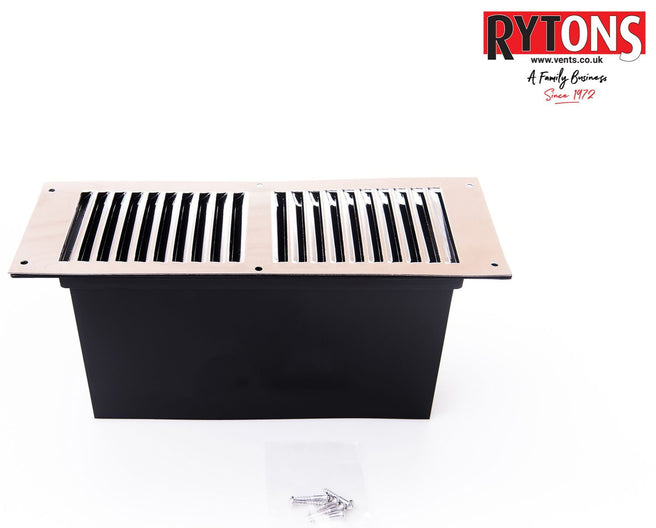

• Sleeve: Polypropylene (contains recycled plastic).

Installation:

• Cut an opening in the floor and insert the sleeve (sleeve can be trimmed with a fine tooth saw to reduce the depth if required). Fasten the louvre to the sleeve through the pre-formed holes using the screws provided. Peel off the protective film.
• Note: When installing in an uncarpeted floor the flange may be trimmed and the louvre ventilator screwed to the floor to maintain as flush a finish as possible.
• Important: In areas where radon gas has been identified as a problem, ventilation shall not be taken from the space below ground floor level (e.g. using a floor vent), or interfere in any way with any remedial measures already in place to prevent radon gas entering the habitable part of the dwelling.

Handling Information:

• Box quantity: 1 set.
• Box size: 28cm W x 11cm H x 14.5cm D.
• Box weight: 0.407kg.

Reference Material:

• The Building Regulations, Approved Document J.
• The Building (Scotland) Regulations, Mandatory Standard 3.21.
• The Building Regulations (Northern Ireland), Technical Booklet L.
• British Standard BS 5440-2.
• For venting decorative fuel effect gas fires refer to British Standard BS 5871-3.
