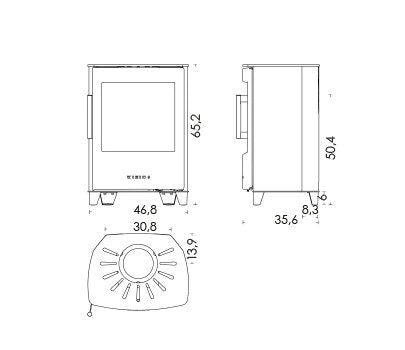

Connection from floor to top outlet, plinth: 56,9 cm
Connection from floor to top outlet, low legs: 61,3 cm
Connection from floor to top outlet, high legs: 79,3 cm
Connection from lower edge of stove to top outlet, wall mounted: 55,0 cm
Distance to combustible material
Rear/Side: 12,5/32,5 cm
Distance from furniture, front: 100 cm
If placed in corner, 45º: 7,5 cm
Above combustible flooring: 22 cm
Weight
Weight without plinth/legs: 71,2 kg
Weight with a plinth: 72,1 kg
Weight with low legs: 72,0 kg
Weight with high legs: 73,5 kg
Approvals
EN 13240 (Europe)
NS 3058/3059 (Norway)
Art. 15a (Austria)
DEFRA (England)
HETAS (England)
Options
Flue outlet top or rear
Colour: black
Combustion air kit (rear/floor connection, (Ø100mm), when fitted with plinth, air can only be taken through the floor .On a plinth, with low or high legs
