Wiking Mini 4 - Lower Door
Wiking Mini 4 - Lower Door
Wiking Mini 4 - Lower Door

Wiking Mini 4 - Lower Door

£1,825.00
***Available to order - please contact us for lead time and availability


TECHNICAL DATA
  • Energy Label - WIKING® Automatic™ : A+
  • Operating range: 3-7 kW
  • Nominal output: 4,5 kW
  • Net efficiency 83%: 83%
  • Flue outlet, Ø125/Ø150mm: 5"/6"
  • Combustion chamber width front/rear: 35/32 cm
  • Chimney draught, min.: 12 Pa

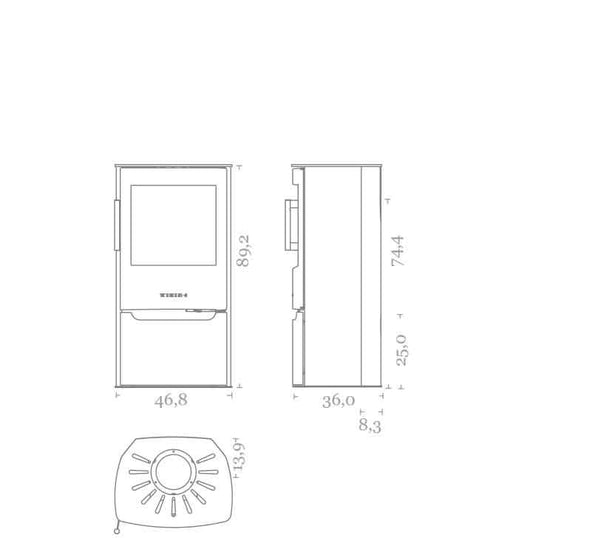

  • Connection from floor to topoutlet : 85 cm

Distance to combustible material
  • Rear/Side: 12,5/32,5 cm
  • Distance from furniture, front : 100 cm
  • If placed in corner, 45º: 7,5 cm
  • Weight with lower door : 86 kg


APPROVALS
  • EN 13240 (Europe)
  • NS 3058/3059 (Norway)
  • The stove annoncement 2018 /Denmark
  • Art. 15a (Austria)
  • DEFRA (England)
  • HETAS (England)
  • EcoDesign 2022 (EU) - WIKING® Automatic™

These stoves are available to order as we are an official dealer. TECHNICAL DATA Energy Label - WIKING® Automatic™: A+ Operating range: 3-7 kW Nominal output: 4.5 kW Net efficiency: 83% Flue outlet, Ø125/Ø150mm: 5"/6" Combustion chamber width front/rear: 35/32 cm Chimney draught, min.: 12 Pa Connection from floor to top outlet: 85 cm Distance to combustible material Rear/Side: 12.5/32.5 cm Distance from furniture, front: 100 cm If placed in corner, 45°: 7.5 cm Weight with lower door: 86 kg APPROVALS EN 13240 (Europe) NS 3058/3059 (Norway) The stove announcement 2018 (Denmark) Art. 15a (Austria) DEFRA (England) HETAS (England) EcoDesign 2022 (EU) - WIKING® Automatic™
