Hwam 3130 Stove
Hwam 3130 Stove

Hwam 3130 Stove

We have This available in different Colour and Designs as HWAM 3130c in black, HWAM 3130c in grey and HWAM 3130m in black.

Technical data

Energy efficiency class HWAM® Autopilot™ : A

Energy efficiency class HWAM® SmartControl™ : A+

HWAM® Autopilot™ : Yes

HWAM® SmartControl™: Yes

Capacity : 2-7 kW

Nominal heat output  : 4,5 kW

Smoke outlet, Ø  : 150 mm

Chimney draught, recommended : 12 Pa

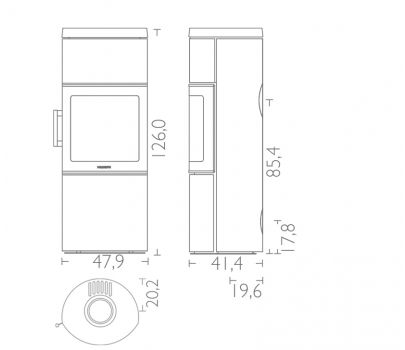

Combustion chamber width : 33 cm

Height : 126 cm

Width  : 47,9 cm

Depth : 41,5 cm

Weight : 113 kg

Outlet connection, measurements,
HWAM® Autopilot™/HWAM® SmartControl™

Connection from floor, top : 94,8/97,5 cm

Combustion air system

Combustion air system can be mounted, back (Ø 100 mm) : Yes

Combustion air system can be mounted, floor (Ø 100 mm) : Yes

Distance to inflammable materials

Distance to inflammable materials, back : 10 cm

Distance to inflammable materials, side : 20 cm

Distance to inflammable materials, front : 80 cm

Distance to inflammable materials, corner location (cm)

All dimensions in connection with corner installation are only recommendations. Contact your chimney sweep for a clarification.

13-34

Distance to furnishing in front : 80 cm

Efficiency, HWAM® Autopilot™/HWAM® SmartControl™

Efficiency, gross/net :78,1/83,4 %

Approvals

EN 13240 (Europa): Yes

Art. 15a (Austria): Yes

NS 3058/3059 (Norway): Yes

The stove announcement (Denmark) Yes

LRV (Switzerland): Yes

BImSchV Stufe 2 (Germany): Yes

RLU zugelassen (Germany): Yes

Exempt under the Clean Air Act (UK): Yes

HETAS registrated (UK) : Yes

EcoDesign 2022 (EU) - HWAM® Autopilot™ : Yes

See schedule here (EN)


EcoDesign 2022 (EU) - HWAM® SmartControl™ : Yes

See schedule here (EN)
