From £3,037.00

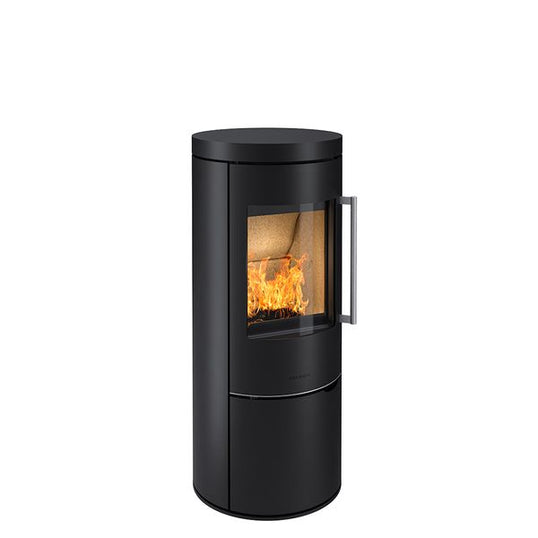

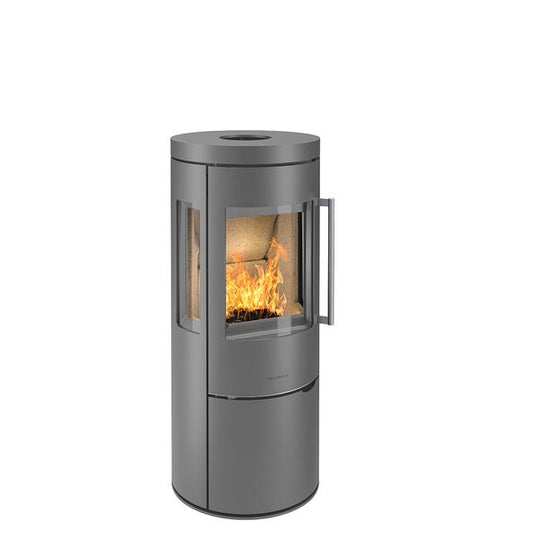

The HWAM 4100 series was inspired by the most complete of all forms: the circle. By choice, the design is as pure as possible, as evidenced by the simple joints and the slim handle.
A solid top plate gives the stove its finishing touch. The cylindrical shape of the wood-burning stove fits well into a corner or up against a straight wall.

Steel Colour

Grey
Black

Technical Data

Energy efficiency class HWAM® Autopilot™ : A+
Energy efficiency class HWAM® SmartControl™ : A+
HWAM® Autopilot™ : Yes
HWAM® SmartControl™ : Yes
Capacity (kW) ; 2-7
Nominal heat output Autopilot™/SmartControl™ (kW) : 4.7 / 4.9
Smoke outlet, Ø (mm) : 150
Chimney draught, recommended Autopilot™/SmartControl™ (Pa) : 12
Combustion chamber width (cm) : 28.4/35.4
Height (cm) : 119
Width (cm) : 51
Depth (cm) : 51

HWAM (kg) : 158

Outlet Connection, Measurements, Autopilot/Autopilot IHS

Connection from floor, top (cm) : 112.6/112.6

Combustion Air System

Combustion air system can be mounted, back (Ø 100 mm) : Yes
Combustion air system can be mounted, floor (Ø 100 mm) : Yes

Distance t0 Inflammable Materials

Back (cm) : 10
Side (cm) : 42
Corner location 45° (cm) (recommended) : 10
Furnishing in front (cm) : 90

Efficiency, Autopilot/Autopilot IHS

Efficiency, gross/net (%) : 82/86

Approvals

EN 13240 (Europe) : Yes
Art. 15a (Austria)* : Yes
NS 3058/3059 (Norway) : Yes
The stove announcement (Denmark) : Yes
LRV (Switzerland) : Yes
BImSchV Stufe 2 (Germany) : Yes
HETAS registrated (England)** : Yes
ECODesign 2022 (Europe) : Yes
Flamme Verte (France)** : Yes
EcoDesign 2022 (EU) - HWAM® Autopilot™ : Yes
EcoDesign 2022 (EU) - HWAM® SmartControl™ : Yes
