HWAM 3500 Stoves
HWAM 3500 Stoves
HWAM 3500 Stoves

HWAM 3500 Stoves

From £3,037.00

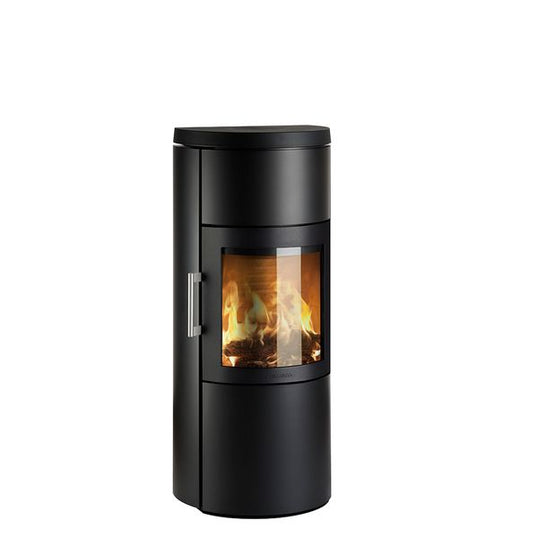

With the perfect proportions and many design options HWAM 3520c is a functional stove with a wealth of practical details. Behind the attractive exterior there is a handy storage space at the bottom and, at the top, a heat storage compartment that can be filled with heat-retaining stone. The HWAM 3500 series are ecofriendly stoves with very low particle emission and high efficiency.
Options

  • HWAM 3520c (classic door) - Available in grey or black steel
  • HWAM 3520m (modern door) - Available in white, grey or black steel
  • HWAM 3520c - Available with soapstone, sandstone - black or grey steel
  • HWAM 3520m - Available with soapstone, sandstone - black or grey steel

HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.

Steel Colour

  • Grey
  • Black
Stonetypes
  • Soapstone
  • Nox Petra
  • San Sebastian
  • Tobacco

TECHNICAL DATA

  • Energy efficiency class HWAM® Autopilot™ : A
  • Energy efficiency class HWAM® SmartControl™ : A+
  • HWAM® Autopilot™ : Yes
  • HWAM® SmartControl™ : Yes
  • Capacity (kW) : 2-7
  • Nominal heat output (kW) : 4,5
  • Smokeoutlet, Ø (mm) : 150
  • Chimney draught, recommended (Pa) : 12
  • Combustion chamber width (cm) : 33
  • Height (cm) : 126
  • Width (cm) : 54
  • Depth (cm) : 37,1
  • Weight (kg) : 118
  • Heat-retaining stones (kg) : 44

OUTLET CONNECTION, MEASSUREMENTS, AUTOPILOT/AUTOPILOT IHS

  • Connection from floor, top (cm) : 95,0/97,7

COMBUSTION AIR SYSTEM

  • Combustion air system can be mounted, back (Ø 100 mm) : Yes
  • Combustion air system can be mounted, floor (Ø 100 mm) : Yes

DISTANCE TO INFLAMMABLE MATERIALS

  • Distance to inflammable materials, back (cm) : 10
  • Distance to inflammable materials, side(cm) : 20
  • Distance to inflammable materials, front(cm) :80
  • Distance to inflammable materials, corner location (cm) (vejledende) : 13-43
  • Distance to furnishing in front (cm) : 80

EFFICIENCY, AUTOPILOT/AUTOPILOT IHS

  • Efficiency, gross/net (%) : 78,1/83,4

APPROVALS

  • EN 13240 (Europa) : Yes
  • Art. 15a (Austria) : Yes
  • NS 3058/3059 (Norway) : Yes
  • The stove announcement (Denmark) : Yes
  • LRV (Switzerland) : Yes
  • BImSchV Stufe 2 (Germany) : Yes
  • RLU zugelassen (Germany) : Yes
  • Exempt under the Clean Air Act (UK) : Yes
  • HETAS registrated (UK) : Yes
  • EcoDesign 2022 (EU) - HWAM® Autopilot™ : Yes
  • EcoDesign 2022 (EU) - HWAM® SmartControl™ : Yes
    expand_less expand_more
    HWAM 3520c - Out of stock £3,837.00
    HWAM 3520m - Out of stock £3,037.00
    HWAM 3520c - with Soapstone Cover - Out of stock £3,787.00
    HWAM 3520m - with Soapstone Cover - Out of stock £3,987.00
    HWAM 3520c - with Tobacco Sandstone Cover - Out of stock £3,887.00
    HWAM 3520m - with Tobacco Sandstone Cover - Out of stock £4,087.00
    HWAM 3520c - with Nox Petra Sandstone Cover - Out of stock £3,987.00
    HWAM 3520m - with Nox Petra Sandstone Cover - Out of stock £4,137.00
    HWAM 3520c - with San Sebastian Limestone Cover - Out of stock £3,987.00
    HWAM 3520m - with San Sebastian Limestone Cover - Out of stock £4,187.00
