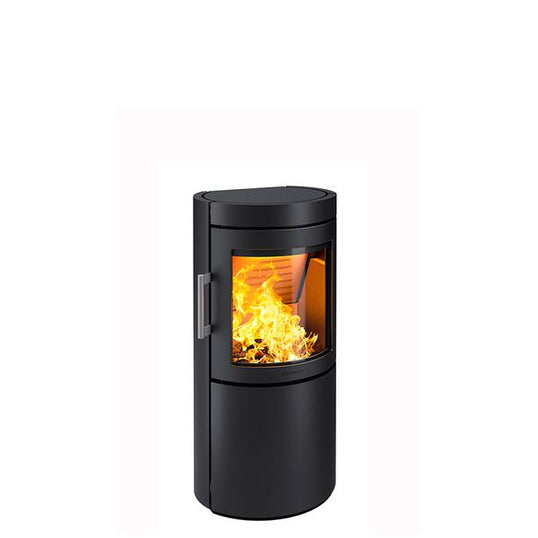

HWAM 3700 Stoves
From
£2,837.00
STYLISH DESIGN
With the HWAM 3700 series, the designers have created a slender wood-burning stove, whose design language is reminiscent of straight columns.
The range is available with the classic HWAM handle or with a new type of handle integrated into the wood-burning stove design to offer a calm and unbroken look.
At the top of the wood-burning stove, the designers have created a convection groove which emphasises the sleek shape of the stove and completes the stylish look. If the flue pipe is to be connected from the rear of the wood-burning stove, the stove comes with a solid top plate that supports the stylish look.
STEEL COLOR
With the HWAM 3700 series, the designers have created a slender wood-burning stove, whose design language is reminiscent of straight columns.
The range is available with the classic HWAM handle or with a new type of handle integrated into the wood-burning stove design to offer a calm and unbroken look.
At the top of the wood-burning stove, the designers have created a convection groove which emphasises the sleek shape of the stove and completes the stylish look. If the flue pipe is to be connected from the rear of the wood-burning stove, the stove comes with a solid top plate that supports the stylish look.
STEEL COLOR
- Grey
- Black
TECHNICAL DATA
- Energy efficiency class HWAM® Autopilot™ : A
- Energy efficiency class HWAM® SmartControl™ : A+
- HWAM® Autopilot™ : Yes
- HWAM® SmartControl™ : Yes
- Capacity (kW) ; 2-7
- Nominal heat output Autopilot™/SmartControl™ (kW) : 4.5 / 4.5
- Smoke outlet, Ø (mm) : 150
- Chimney draught, recommended Autopilot™/SmartControl™ (Pa) : 12 / 12
- Combustion chamber width (cm) : 33
- Height (cm) : 102.5
- Width (cm) : 49.9
- Depth (cm) : 37.5
WEIGHT
- HWAM 3740c (kg) : 104
- HWAM 3740m (kg) : 101
OUTLET CONNECTION, MEASSUREMENTS, AUTOPILOT/AUTOPILOT IHS
- Connection from floor, top (cm) : 94.8 /97.5
COMBUSTION AIR SYSTEM
- Combustion air system can be mounted, back (Ø 100 mm) : Yes
- Combustion air system can be mounted, floor (Ø 100 mm) : Yes
DISTANCE TO INFLAMMABLE MATERIALS
- Back (cm) : 10
- Side (cm) : 35
- Corner location 45° (cm) (recommended) : 9
- Furnishing in front (cm) : 90
EFFICIENCY, AUTOPILOT/AUTOPILOT IHS
- Efficiency, gross/net (%)78.1 /83.4
APPROVALS
- EN 13240 (Europe) : Yes
- Art. 15a (Austria)* : Yes
- NS 3058/3059 (Norway) : Yes
- The stove announcement (Denmark) : Yes
- LRV (Switzerland) : Yes
- BImSchV Stufe 2 (Germany) : Yes
- HETAS registrated (England)** : Yes
- ECODesign 2022 (Europe) : Yes
- Flamme Verte (France)** : Yes
- EcoDesign 2022 (EU) - HWAM® Autopilot™ : Yes
- EcoDesign 2022 (EU) - HWAM® SmartControl™ : Yes
